MCX微型射頻同軸連接器
MICROAX RF COAXIAL CONNECTORS
MCX系列射頻連接器是一種小型推入自鎖式連接器，它具有體積小、重量徑、機構緊湊的持點�？捎糜趯w積、重量及安裝方式有要求的小型電子設備或網(wǎng)絡系統(tǒng)。
The series of MCX radio frequency joining device is that one kind since pushed the lock type joining device small-scaly, it has a small, light, characteristic with compact structure, Small-scale electronic equipment or network system that can be used for requiring to volume, weight and installation way.

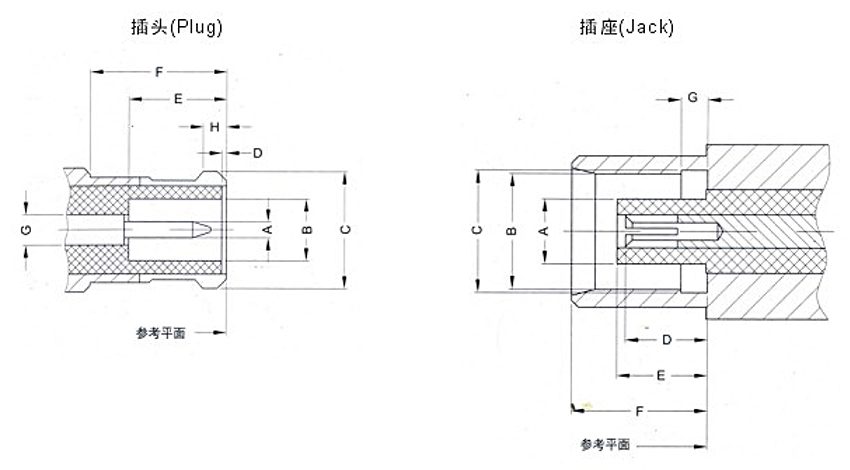

界面尺寸 INTERFACE MATING DIMENSIONS
| Plug插頭 |
| Code代號 |
Millimeters |
| MIN |
MAX |
| A |
0.48 |
0.53 |
| B |
2 |
2.07 |
| C |
3.72 |
3.8 |
| D |
0 |
0.3 |
| E |
2.8 |
3.2 |
| F |
4.16 |
- |
| G |
0.95nom |
| H |
0.70 |
0.75 |
| Jack插座 |
| Code代號 |
Millimeters |
| MIN |
MAX |
| A |
1.8 |
1.98 |
| B |
3.42 |
3.48 |
| C |
3.61 |
3.76 |
| D |
2.31 |
2.79 |
| E |
2.61 |
2.79 |
| F |
4 |
4.12 |
| G |
0.75 |
0.85 |
|
